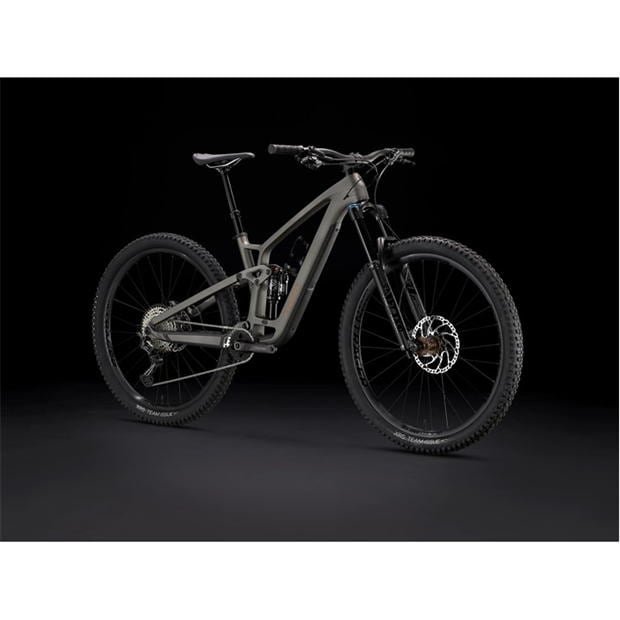

Trek Fuel EX 9.7 Mountain Bike Angebote

Fuel EX 9.7 is an all-mountain ripper that rolls in with the best balance of performance and pocket-friendly components, without skimping on the good stuff. It features a lightweight carbon frame, plus a cherry-picked blend of Shimano SLX and XT components that balance price and ride quality, plus, the ultra-smooth handling of a FOX 150 mm front and 140 mm rear suspension.

The Tech you'll get: A light and stiff full carbon frame, 150 mm of travel from FOX's Rhythm 36 fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. A perfect blend of Shimano SLX and XT components for reliable shifting and durability on the trail. Finally, you'll find adjustable geometry and in-frame storage for keeping your set-up dialled just for you.

Key Features

• You get the light and stiff feel of a carbon fibre frame, plus progressive trail geometry that's ready to handle it all
• You'll find the right balance of price and performance with a cherry-picked blend of Shimano SLX and XT components
• With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
• Guided internal routing, universal derailleur hanger, improved hardware and a threaded BB make maintenance a breeze
• We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5 wheels, S frames get to choose between 27.5 or 29, and sizes M and up get 29 wheels

Specifications

Frameset

• Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
• Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle 150mm Travel (140mm for XS, S)
• Rear Shock: Fox Performance Float X, 2-position damper, 185 mm x 55 mm

Wheels

• Rims: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110 / 148, 15/12 mm thru axle
• Tyres: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 2.50

Drivetrain

• Crankset: Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
• Shifters: Shimano SLX M7100, 12-speed
• Rear Derailleur: Shimano XT M8100, long cage
• Chain: Shimano SLX M7100, 12-speed
• Cassette: Shimano SLX M7100, 10-51T, 12-speed
• Bottom Bracket: Shimano BB-MT501 BSA

Components

• Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise
• Stem: Bontrager Elite, 35 mm, 0-degree
• Grips: Bontrager XR Trail Elite, nylon lock-on
• Brakes: SRAM DB 8 4-piston hydraulic disc
• Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
• Seatpost: TranzX JD-YSP39, internal routing, 34.9 mm

Trek Fuel EX Sizing
